IHT PUMPS

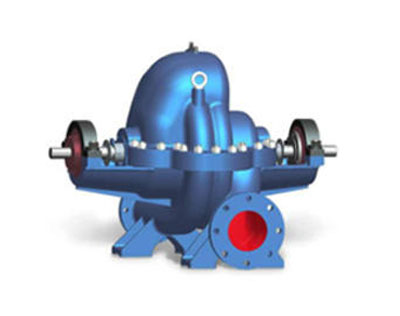

iHT pumps are horizontal split case single/double stage centrifugal pumps. All single stage pumps are provided with double suction type impeller. Both single stage/double stage pumps are fitted with DIN 24960 cavity mechanical seal. The impeller/s is/are centrally placed on a sturdy designed shaft and the entire rotating assembly is dynamically balanced to provide a smooth, trouble free, longer and efficient operation.
Features :
Highly efficient - low operation cost Compact size and less floor space.
Low down time - quickly fixable Low prime mover cost.
Lowest pumping - project cost Dual Drive to reduce downtime.
Application :
Suitable for Fire fighting Primary & secondary HVAC application High pressure boosting system Dewatering in mines Cooling tower Recirculation Desalination Water supply Paper plant Steel plant for high pressure injection Sugar plant Industrial utility water application.
Specification :
Delivery Sizes : Upto 300 mm
Discharge : 30-1300 m3 /hr
Head : 30 to 250 m Speed 2900 rpm
Temperature : 8 0 C - 90 0C
Highly efficient - low operation cost Compact size and less floor space.
Low down time - quickly fixable Low prime mover cost.
Lowest pumping - project cost Dual Drive to reduce downtime.
Application :
Suitable for Fire fighting Primary & secondary HVAC application High pressure boosting system Dewatering in mines Cooling tower Recirculation Desalination Water supply Paper plant Steel plant for high pressure injection Sugar plant Industrial utility water application.
Specification :
Delivery Sizes : Upto 300 mm
Discharge : 30-1300 m3 /hr
Head : 30 to 250 m Speed 2900 rpm
Temperature : 8 0 C - 90 0C
