SHM

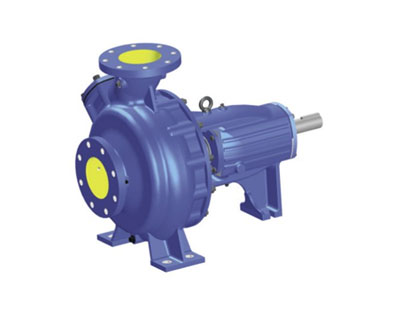

SHM are horizontal non-clog pumps having single stage, single suction with back pull out type design. SHS are vertical non-clog pumps for wet pit applications. The pump section is suspended by a column pipe which also protects the transmission shaft. These pumps can be offered with a column length up to 6.5 m. The impeller is single suction type non-clog, free flow dynamically balanced. For SHM pumps the standard lubrication is grease and the optional one is oil. In case of SHS pumps the lubrication is grease based. These pumps are widely used in paper industries, water carrying gravel and so on.
Features :
Solid size up to 105 mm
Back pull-out design
Gland packed / Mechanical Seal
50 Hz / 60 Hz availability
Also available in vertical execution
Application :
Sludge
Sewage
Power material slurries
Sugar factory waste
Specification :
Delivery size : up to 200 mm
Capacity : up to 800 m³/hr
Head : up to 90 m
Temperature : (-) 10 °C to 140 °C
Solid size up to 105 mm
Back pull-out design
Gland packed / Mechanical Seal
50 Hz / 60 Hz availability
Also available in vertical execution
Application :
Sludge
Sewage
Power material slurries
Sugar factory waste
Specification :
Delivery size : up to 200 mm
Capacity : up to 800 m³/hr
Head : up to 90 m
Temperature : (-) 10 °C to 140 °C
